Legrand IG5362WSP

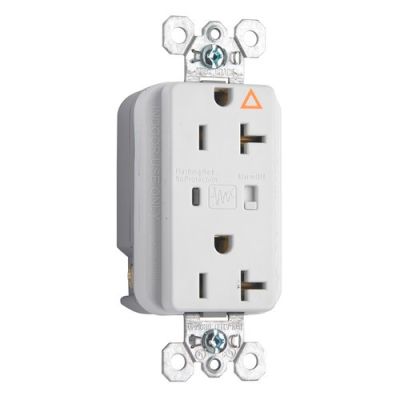

Pass & Seymour IG5362WSP Duplex Isolated Ground Surge Protective TVSS Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White
Receptacles
543914 IG5362WSP
Legrand
$0.00 / ea

Legrand IG5362WSP
  • Amperage Rating: 20
  • Color: White
  • Dimensions: 1.7 in L x 1.25 in W x 3.75 in H
  • Frequency Rating: 60
  • Grade: Commercial/Specification
  • Material: Nylon
  • Nema Rating: NEMA 5-20R
  • Number of Poles: 2
  • Number Of Wires: 3
  • Temperature Rating: -4 to 131
  • terminal type: Back/Side Wire
  • Type: Duplex Isolated Ground Surge Protective TVSS
  • Voltage Rating: 125
Isolated Ground Surge Protective Duplex Receptacle offers increased transient protection, reliability and protection notification (Audible Alarm with LED Indicator). Back and, Side Wire, 20amp 125volt, White.
QTY
Add to Wishlist
  • Features
  • Solid-state LED monitor has 25-year minimum life expectancy
  • Auto-ground is standard, for easier installation
  • LED indication steady green protected, flashing red not protected, off no power to unit
  • Audible alarm alert of MOV damage
  • Alarm able to be turned On-Off
  • Wrap-around steel strap for structural integrity
  • A high visibility, wide angle lens indicates protection is in place
  • Impact-resistant nylon exterior resists impacts and scrapes
  • Triple-wipe, copper alloy contacts for superior and more dependable connection
  • External screw pressure plate back and side wire terminals including ground with external back wire clamps (exclusive) accept 14 to 10 AWG copper or copper-clad, solid or stranded conductors
  • External pressure plate feature allows 2-conductors to be terminated by a single screw
  • Thermal protection in all 3-modes
  • (3) 17 mm dual pack MOVs absorb up to 340 J of excess energy in each leg (L-N, L-G, N-G) with 24000 A current handling capability for full, equal and symmetrical protection
  • Protection response time in less than one nanosecond
  • IG symbol and isolated ground markings for easy identification and circuit delineation
  • Plastic barrier isolates grounding terminal from mounting strap and metal boxes
  • Installation categories-A (ring wave) and B (unidirectional impulse)
  • -40 to 85 deg C storage temperature
