Legrand PT2097HGTRWRW

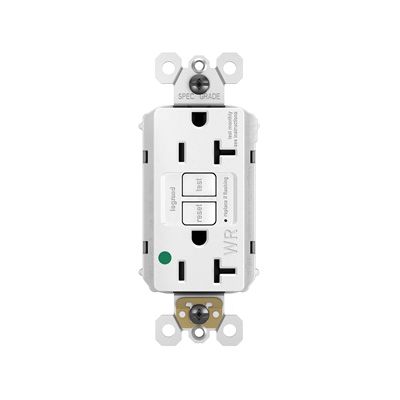

Pass & Seymour PT2097HGTRWRW Self-Test Tamper-Resistant Weather-Resistant GFCI Receptacle, 125 VAC, 20 A, White
Receptacles
7777948 PT2097HGTRWRW
Legrand
$0.00 / ea

Legrand PT2097HGTRWRW
  • Amperage Rating: 20
  • Color: White
  • Dimensions: 4.2 in H x 1.73 in W x 1.2 in D
  • Frequency Rating: 60
  • Grade: Hospital
  • Material: Nylon
  • Nema Rating: NEMA 5-20R
  • Temperature Rating: -35 to 66
  • terminal type: PlugTail
  • Type: Self-Test Tamper-Resistant Weather-Resistant
  • Voltage Rating: 125
Pass & Seymour GFCI Receptacle, Self-Test Tamper-Resistant Weather-Resistant, 125 VAC, 20 A, 60 Hz Frequency, NEMA 5-20R NEMA Rating, Hospital Grade, -35 to 66 deg C, PlugTail Terminal, Nylon, White, 4.2 in H x 1.73 in W x 1.2 in D Dimensions
QTY
Add to Wishlist
  • Features
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections to PlugTail® connector
  • GFCI works with the existing 3-wire PlugTail® connectors creating a non-feed-through application for facility owners
  • At rough-in, just install the same right angle connector for GFCI and receptacle openings
  • Large crimped and welded brass contacts snugly terminate on device blade terminals
  • Audible snapping latch assures connection, allows release
  • Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL listed, finger safe housing environment
  • Patented SafeLock® protection if critical components are damaged and ground fault protection is lost, power to the receptacle is disconnected
  • The indicator light flashes if the device fails the self-test, signaling that the GFCI should be replaced
  • Tamper-resistant automatic shutter system prevents young children from inserting common household objects
  • Captive zinc plated steel mounting screws make for easier installation
  • Auto-ground clip assures a positive ground to metal box
  • UV-resistant nylon construction for superior strength and durability
