Legrand TR26362LA

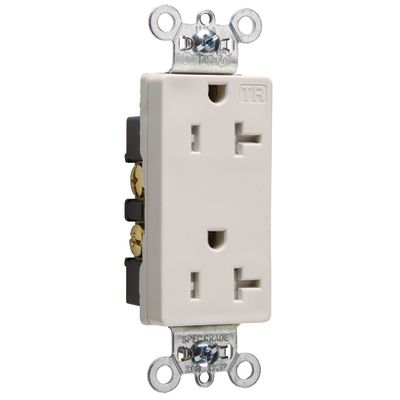

Pass & Seymour TR26362LA Decorator Duplex Heavy Duty Tamper-Resistant Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Light Almond
Receptacles
6997804 TR26362LA
Legrand
$0.00 / ea

Legrand TR26362LA
  • Amperage Rating: 20
  • Color: Light Almond
  • Dimensions: 1.322 in L x 0.833 in W x 3.813 in H
  • Enclosure: NEMA WD-1/WD-6
  • Grade: Commercial/Specification
  • Material: Nylon/Thermoplastic
  • Nema Rating: NEMA 5-20R
  • Number of Poles: 2
  • Number Of Wires: 3
  • Temperature Rating: -40 to 60
  • terminal type: Back/Side Wire
  • Type: Decorator Duplex Heavy Duty Tamper-Resistant
  • Voltage Rating: 125
Tamper-Resistant Heavy-Duty Decorator Spec Grade Duplex Receptacle Back and, Side Wire 20amp 125volt Light Almond
QTY
Add to Wishlist
  • Features
  • Dual mechanical shutter system to help prevent insertion of foreign objects
  • Auto-ground clip assures positive ground
  • Easily accessed break-off line contact connecting tab for fast and easy split circuit wiring
  • Backed-out tri-drive brass terminal screws for faster installation
  • Internal screw pressure plate back and side wire capability
  • 2-drive screws anchor steel strap to back body and face where abrupt removal torque is greatest
  • Corrosion-resistant plated steel strap is locked in to the face and back body to resist pulling away from the face/body assembly
  • 0.032 in THK, brass triple wipe power contracts for lasting retention
  • 1-piece brass, triple wipe power contacts for lasting retention
  • Two back wire holes for additional wiring flexibility
  • Maximum 30 deg C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current
  • External screw pressure plate back wire clamps with 10 AWG brass terminal screws for visual assurance of a good connection
  • 1-piece plated steel mounting strap with integral ground for superior long term performance
  • Patented feature, external screw pressure plate back wire clamp-on ground terminal for faster, easier installation
  • Withstands 2000 VAC minimum dielectric voltage
  • Terminal identification in accordance with UL 498 (brass, white, green)
  • Ratings are a permanently marked on the device
