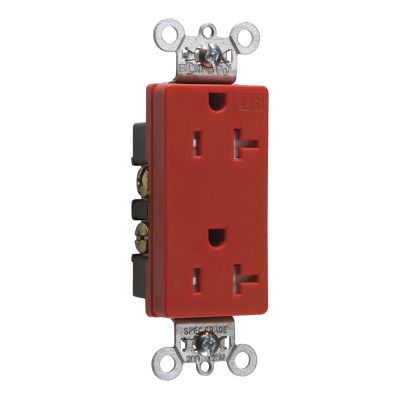

Legrand TR26362RED

Pass & Seymour TR26362RED 3-Phase Decorator Duplex Heavy Duty Tamper-Resistant Wall Mount Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Red
Receptacles
7697148 TR26362RED
Legrand
$0.00 / ea

Legrand TR26362RED
  • Amperage Rating: 20
  • Color: Red
  • Dimensions: 5.13 in L x 2 in W x 1.4 in H
  • Grade: Federal Specification
  • Material: Thermoplastic
  • Nema Rating: NEMA 5-20R
  • Number of Poles: 2
  • Number Of Wires: 3
  • terminal type: Back/Side Wire
  • Type: 3-Phase Decorator Duplex Heavy Duty Tamper-Resistant Wall Mount
  • Voltage Rating: 125
Pass & Seymour Straight Blade Receptacle, 3-Phase Decorator Duplex Heavy Duty Tamper-Resistant Wall Mount, 125 VAC, 20 A, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Federal Specification Grade, Back/Side Wire Terminal, Thermoplastic, Red, 5.13 in L x 2 in W x 1.4 in H Dimensions
QTY
Add to Wishlist
  • Features
  • Dual mechanical shutter system to help prevent insertion of foreign objects
  • Auto ground clip assures positive ground
  • Easily accessed break-off line contact connecting tab for fast and easy split circuit wiring
  • Backed out tri-drive brass terminal screws for faster installation
  • Internal screw pressure plate back and side wire capability
  • 2-back wire holes for more wiring flexibility
  • Corrosion resistant plated steel strap is locked into face and back body to resist pulling away from the face/body assembly
  • 0.032 in thick, brass, triple wipe power contacts for lasting retention
  • 2-drive screws anchor steel strap to back body and face where abrupt removal torque is strongest
