Legrand TR5262USBI

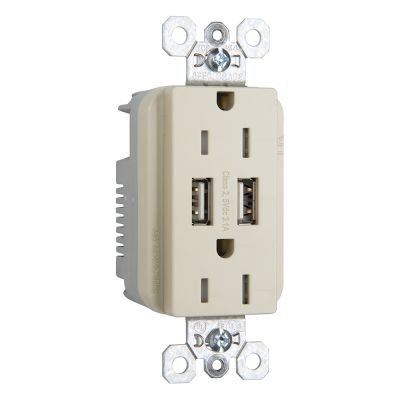

Pass & Seymour TR5262USBI Tamper-Resistant Duplex Receptacle, 15 A, 125 VAC, 1 Phase, 2 Poles, 3 Wires, Ivory
Receptacles
7382485 TR5262USBI
Legrand
$0.00 / ea

Legrand TR5262USBI
  • Color: Ivory
  • Connection: Back/Side Wired/Screw
  • Electrical Ratings: 15 A, 125 VAC
  • Environmental Conditions: UL 94 V-2 Flammability Rated
  • Grade: Federal Specification/Hospital
  • Material: Nylon/Polycarbonate/Thermoplastic
  • Mounting: Surface
  • Number of Poles: 2
  • Number Of Wires: 3
  • Phase: 1
  • Series: TR Series
  • Size: 1.693 in W x 1.392 in D x 3.281 in H
  • Type: Tamper-Resistant
  • USB Quantity: 2
  • USB Rating: 3.1 A at 5 VDC
  • USB Type: 2.0/3.0
  • Wire size: 14 to 10
  • Wiring Method: Back/Side Wired
Combination 15A 125V Tamper-Resistant Duplex Outlet with Two USB Chargers - Ivory
QTY
Add to Wishlist
  • Features
  • Overall 3.1 A USB charging capability combination AC duplex receptacles include two 5 VDC USB ports that work with USB 2 and 3 compatible devices
  • AC receptacles are tamper-resistant as standard patented shutter system prevents improper insertion of foreign objects
  • Back and side wire terminals accommodate 14 to 10 AWG stranded and solid copper wire
  • Stainless steel auto-ground clip assures positive ground
  • NEMA 5-15R
  • Stainless steel auto-ground clip
