Legrand TR5351

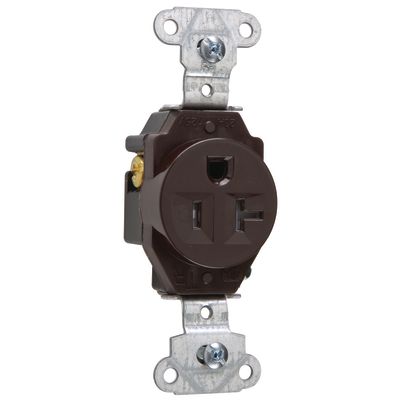

Pass & Seymour TR5351 Single Tamper-Resistant Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Brown
Receptacles
7399366 TR5351
Legrand
$0.00 / ea

  • Amperage Rating: 20
  • Color: Brown
  • Dimensions: 1.296 in L x 1.19 in W x 3.28 in H
  • Grade: Commercial/Construction/Specification
  • Material: Nylon
  • Nema Rating: NEMA 5-20R
  • Number of Poles: 2
  • Number Of Wires: 3
  • Temperature Rating: -40 to 60
  • terminal type: Back/Side Wire
  • Type: Single Tamper-Resistant
  • Voltage Rating: 125
Tamper-Resistant Construction Spec Grade Single Receptacle Back and, Side Wire 20amp 125volt Brown
  • Features
  • Dual mechanical shutter system to help prevent insertion of foreign objects
  • Auto-ground clip assures positive ground
  • Easily accessed break-off line contact connecting tab for fast and easy split circuit wiring
  • Backed-out tri-drive brass terminal screws for faster installation
  • Internal screw pressure plate back and side wire capability
  • 2-drive screws anchor steel strap to back body and face where abrupt removal torque is greatest
  • Corrosion-resistant plated steel strap is locked in to the face and back body to resist pulling away from the face/body assembly
  • 0.032 in THK, brass triple wipe power contracts for lasting retention
  • 1-piece brass, triple wipe power contacts for lasting retention
  • Two back wire holes for additional wiring flexibility
  • Maximum 30 deg C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current
  • Heavy duty, corrosion-resistant zinc plated steel strap for added strength
  • Withstands 2000 VAC minimum dielectric voltage
