Legrand TR63

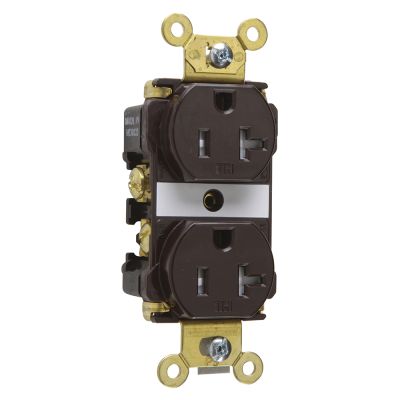

Pass & Seymour TR63 3-Phase Duplex Tamper-Resistant Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Brown
Receptacles
6852538
TR63
Legrand
$0.00
/ ea
- Amperage Rating: 20
- Color: Brown
- Dimensions: 4.3 in H x 1.8 in W x 1.3 in D
- Enclosure: NEMA WD-1
- Grade: Commercial/Hospital
- Material: Nylon/Thermoplastic
- Nema Rating: NEMA 5-20R
- Number of Poles: 2
- Number Of Wires: 3
- Temperature Rating: -40 to 60
- terminal type: Back/Side Wire
- Type: 3-Phase Duplex Tamper-Resistant
- Voltage Rating: 125
Tamper-Resistant Spec Grade Duplex Receptacle Back and, Side Wire 20amp 125volt Brown
- Features
- Thermoplastic dual mechanism shutter system to help prevent insertion of foreign objects
- Exclusive patented feature, circuit label on face allows permanent circuit identification
- Extra heavy duty brass, 1-piece mounting strap with integral ground
- 1-piece brass triple wipe power contacts for lasting retention
- Strap tabs wrap-around and lock down on face to prevent strap from separating from face and back body
- Impact resistant nylon face and back body
- Easily accessed break OFF line contact connecting tab for fast and easy split-circuit wiring
- Two drive screws anchor strap to back body and face
- Exclusive patented feature, external screw pressure plate back wire clamp-on ground terminal for faster, easier installation
- External screw pressure plate back wire clamps with 10 AWG brass terminal screws for visual assurance of a good connection
- Auto-ground clip assures positive ground
- Withstands 2000 VAC minimum dielectric voltage
- Maximum 30 deg C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current
- UL 92-V2 flammability rating
- Terminal identification in accordance with UL498 (brass, white, green)
- Ratings are a permanently marked on the device
- Surge protective, corrosion resistant, LED indication
