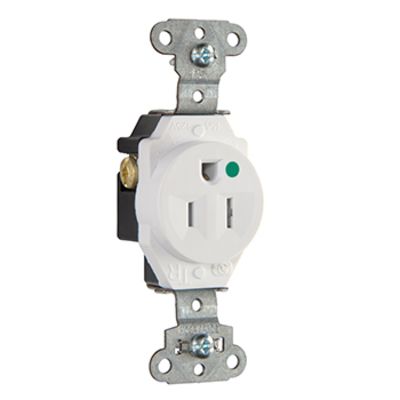

Legrand TR8201W

Pass & Seymour TR8201W Single Tamper Resistant Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White
Receptacles
7552561 TR8201W
Legrand
$0.00 / ea

Legrand TR8201W
  • Amperage Rating: 15
  • Color: White
  • Dimensions: 3.28 in H x 1.32 in W x 1.093 in D
  • Grade: Hospital
  • Material: Nylon
  • Nema Rating: NEMA 5-15R
  • Number of Poles: 2
  • Number Of Wires: 3
  • Temperature Rating: -40 to 60
  • terminal type: Back/Side Wire
  • Type: Single Tamper Resistant
  • Voltage Rating: 125
Pass & Seymour Straight Blade Receptacle, Single Tamper Resistant, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Hospital Grade, -40 to 60 deg C, Back/Side Wire Terminal, Nylon, White, 3.28 in H x 1.32 in W x 1.093 in D Dimensions
QTY
Add to Wishlist
  • Features
  • 0.032 in THK brass triple wipe power contacts for lasting retention
  • Tri-drive steel terminal screws
  • Internal screw pressure plate back and side wire capability
  • Dual mechanical shutter system to help prevent insertion of foreign objects
  • Heavy duty zinc-plated steel strap for added strength strap tabs wrap around face to prevent strap from separating from face and back body
  • Two drive screws anchor strap to back body and face where abrupt removal torque is strongest
  • Auto-ground eliminates the necessity to terminate grounding conductor in device
