Legrand WR20TRGRY

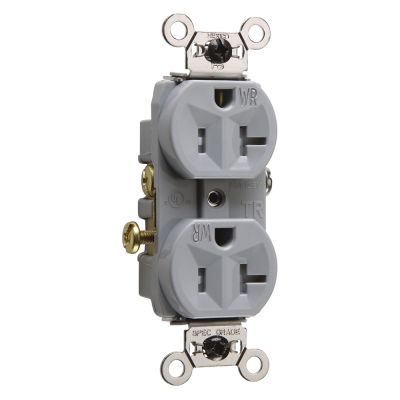

Pass & Seymour WR20TRGRY 3-Phase Duplex Tamper Resistant Weather Resistant Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Gray
Receptacles
7268276
WR20TRGRY
Legrand
$0.00
/ ea
- Amperage Rating: 20
- Color: Gray
- Dimensions: 5.13 in H x 2.1 in W x 1.43 in D
- Grade: Commercial
- Material: Thermoplastic
- Nema Rating: NEMA 5-20R
- Number of Poles: 2
- Number Of Wires: 3
- terminal type: Side Wire
- Type: 3-Phase Duplex Tamper Resistant Weather Resistant
- Voltage Rating: 125
Commercial Grade Weather-Resistant and, Tamper-Resistant Duplex Receptacle Side Wire 20amp 125volt Gray
- Features
- Auto-ground clip assures positive ground
- WR marking on face as required by UL standard
- Zinc plated steel mounting screws for greater ease of installation and removal in wet or damp locations
- Strap tabs wrap-around face to prevent strap from separating from face and back body
- Tri-drive brass terminal screws
- Internal screw pressure plate back and side wire capability
- Two back wire holes for more wiring flexibility
- Heavy duty, brass strap for added strength and ground conductivity
- UV resistant nylon face for longer life under adverse environmental conditions
- Two drive screws anchor strap to back body and face where abrupt removal torque is strongest
- Easily accessed break OFF line contact connecting tab for fast and easy split-circuit wiring
- 0.032 in THK brass triple wipe power contacts for lasting retention
- UL 94-V2 flammability rating
