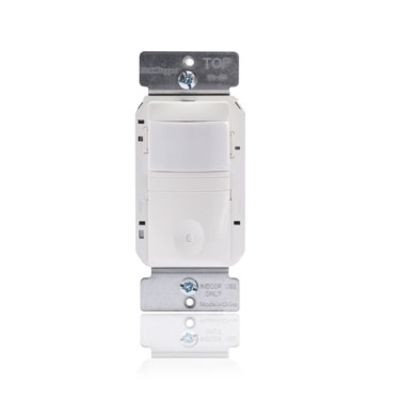

Wattstopper CS-50-W
WattStopper CS-50-W 2-Wire Wall Mount Vacancy Sensor, 120 VAC, PIR Sensor, 600 sq-ft Coverage, 180 deg Viewing, Wall Mount
Occupancy and Motion Sensors
7114853
CS-50-W
Wattstopper
$0.00
/ ea
- Color: White
- Connection Type: Flying Lead
- Control Output: Manual On/Automatic Off
- Coverage: 600
- Dimensions: 2.67 in L x 1.73 in W x 1.77 in H
- Lamp Type: Fluorescent/Incandescent
- Material: Plastic
- Mounting Type: Wall
- Power Rating: 1000 W, 1/6 hp
- Sensor Type: PIR
- Series: CS-50
- Temperature Rating: 0 to 55
- Time Delay: 30 s to 30 min
- Type: 2-Wire
- Viewing Angle: 180
- Voltage Rating: 120
The CS-50 Passive Infrared (PIR) Vacancy Sensor provides automatic shutoff for single-pole lighting control applications in the home. It is engineered to comply with CaliforniaвЂs Title 24-2008 residential energy code. (white)
- Features
- Replaces single channel switches
- Adjustable time delay, 30 s to 30 min
- If enabled, status indicator blinks when motion is detected
- Low profile styling
- Choice of five decorator colors, lens is color matched to device
- Operates most common types of lighting or fan motors
- Relay based switching
- No current leakage to load in OFF mode for safety
- Compatible with decorator wallplates
- 0 to 600 W incandescent or fluorescent, 1/6 hp fan motor
- 1/6 hp fan motor
- Without neutral
