Wattstopper DW-100-24-W

WattStopper DW-100-24-W DW Series Dual Technology Low Voltage SPDT Relay Wall Mount Occupancy Sensor, 24 VDC, Passive Infrared Sensor, 525 sq-ft Coverage, Wall Mount
Occupancy and Motion Sensors
6978492 DW-100-24-W
Wattstopper
$0.00 / ea

Wattstopper DW-100-24-W
  • Color: White
  • Connection Type: Flying Lead
  • Control Output: Automatic On/Off, Manual On/Off
  • Coverage: 525
  • Dimensions: 2.73 in L x 1.76 in W x 1.83 in H
  • Material: Plastic
  • Mounting Type: Wall
  • Response Frequency: 50/60
  • Sensor Type: Passive Infrared
  • Series: DW Series
  • Temperature Rating: 0 to 35
  • Time Delay: 5 to 30
  • Type: Dual Technology Low Voltage SPDT Relay
  • Voltage Rating: 24

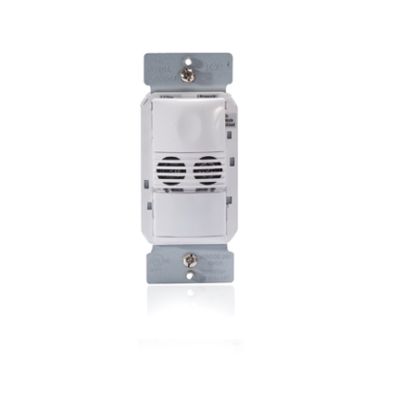

The DW-100 dual technology wall switch sensor combines the benefits of passive infrared (PIR ) and ultrasonic technologies, and can turn lights OFF and ON based on occupancy. It is characterized by high sensitivity to small and large movements, appealing aesthetics, and a variety of features. (white, 24 volts)
QTY
Add to Wishlist
  • Features
  • Detection signature analysis eliminates false triggers and provides immunity to RFI and EMI
  • Zero crossing for long relay life
  • Vandal-resistant lens combines precise coverage with durability
  • Selectable walk through mode turns lights off 3 min after the room is initially occupied if no motion is detected after the first 30 s
  • Test mode allows quick and easy adjustments
  • Selectable audible alert for impending shutoff
  • In automatic mode, sensor returns automatically to auto-ON after lights are turned OFF manually, ideal for presentations
  • Four occupancy logic options give users the ability to customize control to meet application needs
  • Service mode allows sensor to operate as a service switch in the unlikely event of a failure
  • Compatible with decorator wallplates
  • 35 ft x 30 ft PIR, 20 ft x 20 ft ultrasonic major motion, 20 ft x 15 ft PIR, 15 ft x 15 ft ultrasonic minor motion sensing distance
