ABB Installation Products STE250
T&B Fittings Star Teck Extreme STE250 Teck Cable Connector, 2-1/2 in Trade, 2.265 to 2.84 in Cable Openings, Aluminum
Channel-Strut Accessories
6856556
STE250
ABB Installation Products
$0.00
/ ea

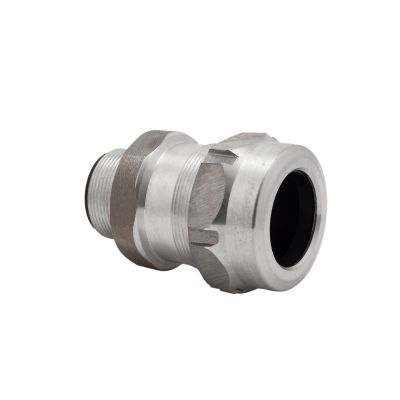

Star Teck Extreme aluminum jacketed cable fitting. Hub size of 2-1/2 inches. Range over jacket from 2.265 - 2.840 inches.
- Features
- Patented power grip grounding ring
- Removable armor stop for greater cable ranges
- Elastomeric collar ring/bushing for greater cable ranges
- Built-in jacket stripping gauge on gland nut
- Gland nut can be tightened with hammer and screwdriver
- Provides means for passing armored, metal clad, jacketed cable through a bulkhead or enclosure in hazardous areas
- Form a mechanical grip and water and/or oil resistant seal for cord
- Provide grounding continuity of cable armor
- Designed to accommodate a broad range of cables
- Each hub range overlaps the adjacent hub range, thereby minimizing the possibility of mismatched cables and fittings in the field
- Built-in sealing device
- 2-1/2 in L strip
- 1600 in-lb gland torque
- 2.105 to 2.68 in cable range over armor
- 2.075 in Dia throat with end stop
- 2.424 in Dia throat without end stop
