ABB Installation Products STE300

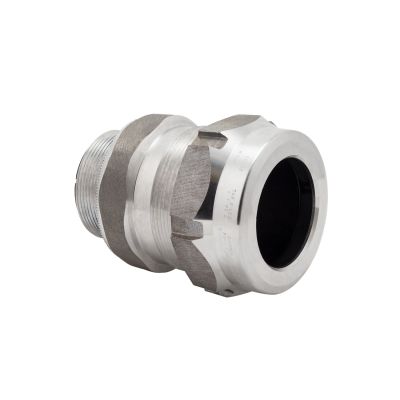

T&B Fittings Star Teck Extreme STE300 Teck Cable Connector, 3 in Trade, 2.67 to 3.27 in Cable Openings, Aluminum
Channel-Strut Accessories
6887734
STE300
ABB Installation Products
$0.00
/ ea
Star Teck Extreme aluminum jacketed cable fitting. Hub size of 3 inches. Range over jacket from 2.670 - 3.270 inches.
- Features
- Patented power grip grounding ring
- Removable armor stop for greater cable ranges
- Elastomeric collar ring/bushing for greater cable ranges
- Built-in jacket stripping gauge on gland nut
- Gland nut can be tightened with hammer and screwdriver
- Provides means for passing armored, metal clad, jacketed cable through a bulkhead or enclosure in hazardous areas
- Form a mechanical grip and water and/or oil resistant seal for cord
- Provide grounding continuity of cable armor
- Designed to accommodate a broad range of cables
- Each hub range overlaps the adjacent hub range, thereby minimizing the possibility of mismatched cables and fittings in the field
- Built-in sealing device
- 2-1/2 in L strip
- 1600 in-lb gland torque
- 2.545 to 3.145 in cable range over armor
- 2.531 in Dia throat with end stop
- 2.89 in Dia throat without end stop
