ABB Installation Products STE400
T&B Fittings Star Teck Extreme STE400 Teck Cable Connector, 4 in Trade, 3.665 to 4.34 in Cable Openings, Aluminum
Channel-Strut Accessories
7007626
STE400
ABB Installation Products
$0.00
/ ea

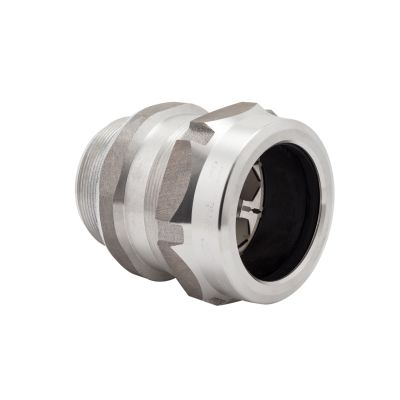

Star Teck Extreme aluminum jacketed cable fitting. Hub size of 4 inches. Range over jacket from 3.665 - 4.340 inches.
- Features
- Patented power grip grounding ring
- Removable armor stop for greater cable ranges
- Elastomeric collar ring/bushing for greater cable ranges
- Built-in jacket stripping gauge on gland nut
- Gland nut can be tightened with hammer and screwdriver
- Provides means for passing armored, metal clad, jacketed cable through a bulkhead or enclosure in hazardous areas
- Form a mechanical grip and water and/or oil resistant seal for cord
- Provide grounding continuity of cable armor
- Designed to accommodate a broad range of cables
- Each hub range overlaps the adjacent hub range, thereby minimizing the possibility of mismatched cables and fittings in the field
- Built-in sealing device
- 2-1/2 in L strip
- 1600 in-lb gland torque
- 3.55 to 4.225 in cable range over armor
- 3.525 in Dia throat with end stop
- 3.941 in Dia throat without end stop
