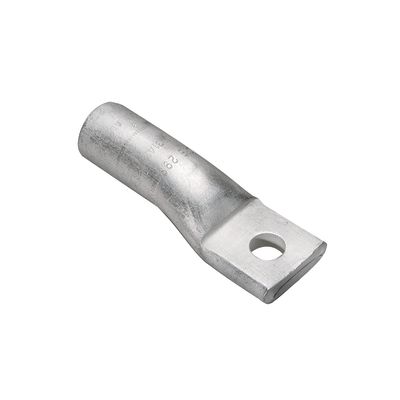

Burndy YA6CA3

BURNDY HYLUG YA6CA3 YA-A 1-Hole Dual Rated Uninsulated Compression Lug, 6 AWG Aluminum/Stranded Copper Conductor, Die Code: 346, 3/8 in Stud, Electro Plated Tin Aluminum
Lighting Motion Control
4354225 YA6CA3
Burndy
$0.00 / ea

Burndy YA6CA3
BURNDY HYLUG Compression Lug, 1-Hole Dual Rated Uninsulated, Series: YA-A, Aluminum/Stranded Copper Conductor, 6 AWG Conductor, Die Code: 346, 600 VAC to 35 kV, 3/8 in Stud, Standard/Straight Tongue, 1.19 in L x 0.65 in W x 0.09 in THK Tongue, 2.28 in Overall Length, Beveled/Standard Barrel, 3/4 in L Barrel, 3/4 in L Wire Strip, 90 deg C, Electro Plated Tin Aluminum, Gray
QTY
Add to Wishlist
  • Features
  • Manufactured from high conductivity, wrought aluminum with heavy duty wall thickness
  • Provides maximum conductivity, low resistance and ductility for an excellent combination of electrical and crimp forming properties
  • Provides durable long lasting corrosion-resistance
  • Internally beveled barrel
  • Provides easy cable insertion
  • Provides a quality electrical dual connection
  • Connector is clearly marked with wire size, die index, color code and the proper number and location of crimps
  • Provides easy identification and tooling recommendation for a proper compression which forms a homogeneous mass resulting in an excellent electrical connection
  • Factory prefilled with PENETROX® oxide inhibiting compound
  • Oxide inhibiting compound contains homogeneously suspended metallic particles to penetrate the wires oxides, establish electrical continuity and forms an airtight connection
  • Color coded end caps inserted in barrel end
  • Prevents foreign materials from entering and contaminating the connector prior to usage plus identifies the proper color coded die for a reliable connection
  • Type YA-A aluminum tin plated compression HYLUG017 terminals are dual rated and designed for use on both aluminum and copper conductors from #12 solid through 2000 kcmil
  • They are designed for heavy duty applications to 35 kV
  • YA-A terminals are prefilled with PENETROX® and assembled with color coded end caps
  • Used for MY29-3, MRC840AL, MY644M, Y81KFT, Y81KFTMBH, PAT81KFT-18V crimpers
  • Straight tongue angle
  • For die set catalog number and (number of crimps) - Y35, Y39, Y750 tool, (1) U6CABT die, Y46 tool, (1) U6CABT die With PUADP-1 adapter, dieless tools (number of crimps) - mechanical - (1) MY29-3, MRC840AL tool, hydraulic hypress - (1) Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY644M tool, die index - 346 installation tool
  • Electro tin plated
  • 0.44 in hole center to end, 0.75 in hole center to barrel
