Eaton B-Line Inc. 20166SCG

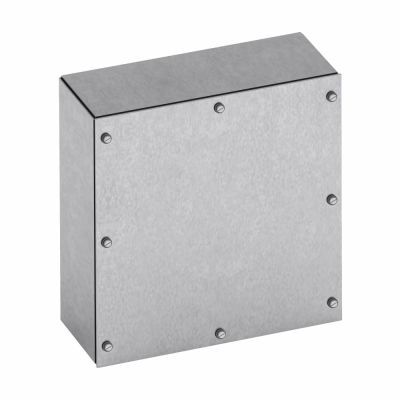

B-Line 20166 SCG Junction Box, 20 in H x 16 in W x 6 in D, Screw Cover, NEMA 3/12/IP66 NEMA Rating, Steel
Circuit Protection Accessories
7590208
20166SCG
Eaton B-Line Inc.
$0.00
/ ea
Eaton B-Line series Type 3/3R junction boxes, 20" height, 6" length, 16" width, NEMA 3 and 12, Screw cover, SCG enclosure, Surface mounted, Medium single door, No mounting provisions, Galvanized steel, Oil-resistant gasket, gasketed screws
- Features
- Enclosure and cover are fabricated from code gauge G-90 grade galvanized steel
- All continuous welded seams are finished smooth
- Enclosure standard without knockouts
- Cover is attached with gasketed screws
- Cover has a fixed, oil and water-resistant gasket
- #10-32 weldnut is furnished for optional ground lug kit
