Eaton DT223URH

EATON DT223URH H Series Compact Design Non-Fusible Rainproof General Duty Safety Switch, 240 VAC, 100 A, DPDT Contact, 2 Poles
IEC Disconnects and Load Switches
6946007 DT223URH
Eaton
$0.00 / ea

Eaton DT223URH

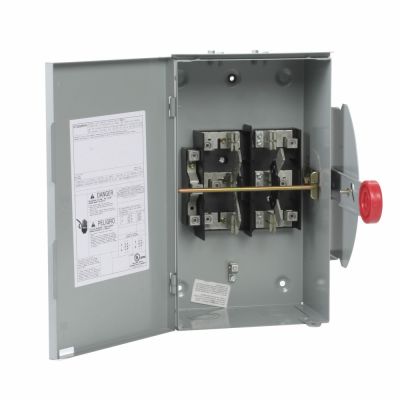

Eaton General duty double-throw safety switch, 100 A, Compact design, NEMA 3R, Painted galvanized steel, Rainproof, Non-fusible, Two-pole, Two-wire, 240 Vac
QTY
Add to Wishlist
  • Features
  • Palm fitting, visible red handle
  • Tri-lingual nameplates
  • NEMA 3R enclosure with side opening door
  • Visible, embossed On-Off indication
  • Lockable door hasp
  • 3-point mounting
  • Terminals suitable for 60 or 75 deg C aluminum or copper wire
  • Rounded shroud
  • Suitable for service entrance use with neutral kit installed
  • Suitable for use on a circuit capable of delivering not more than 10000 RMS symmetrical amperes
  • Compact size
  • Mechanically interlocked cover to prevent easy access when the switch is in the ON position
  • Concentric knockouts on bottom endwall and sides
