Hubbell Killark EXB-NFD-0603P

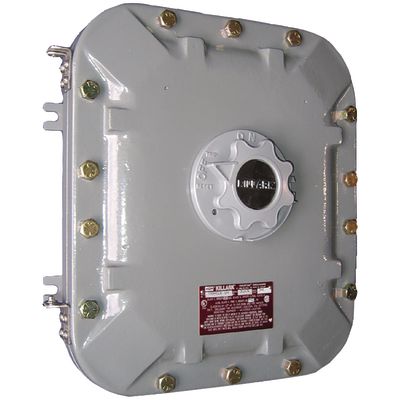

Killark EXB-NFD-0603P Non-Fused Disconnect Switch, 600 VAC, 60 A, 20 hp, 40 hp, 3PST Contact, 3 Poles
Circuit Breakers
6930177
EXB-NFD-0603P
Hubbell Killark
$0.00
/ ea
Killark, EXB-NFD-0603P, Disconnect Switch, Non-Fused, Series: EXB-NFD, 600 VAC, 60 A, 20 hp, 40 hp, 3 ph, 60 Hz Frequency, 3 Pole, 3PST Contact Form, Handle Actuator, NEMA 3/4/4X/7B/7C/7D/9E/9F/9G Enclosure, Wall Mounting, 40 deg C, 12-5/16 in L x 9-7/16 x 14-5/16 in H Dimensions, Aluminum Lacquer Painted
- Features
- Copper-free aluminum construction, high strength, lighter in weight and corrosion-resistant
- Fewer cover bolts (no corner bolts required) reduces installation and maintenance time
- Cover bolts are stainless steel
- Gasketed flange with O-ring located inside the bolt circle to seal out moisture
- Stainless steel hinges are standard
- Switch operating handle of copper-free aluminum can be padlocked, with up to 3 locks, in either the "ON"/"OFF" position
- Ductile mounting lugs adjust to irregular mounting surfaces
- Bodies have top and bottom drilled and taped conduit entrances for power and drain/breather
- Global applications (ATEX) enclosures are available for global applications with "CEN" suffix
- Assemblies that are modified to CENELeC/ATEX standards maintain their North American certifications
- EXB-NFD series hinged cover disconnect switches are used in locations made hazardous due to the presence of flammable gasses or vapors or ignitable dusts, fibers and flyings
- 20 hp at 240 VAC, 40 hp at 480/600 VAC horse power rating
