Hubbell Wiring HBL2723SW

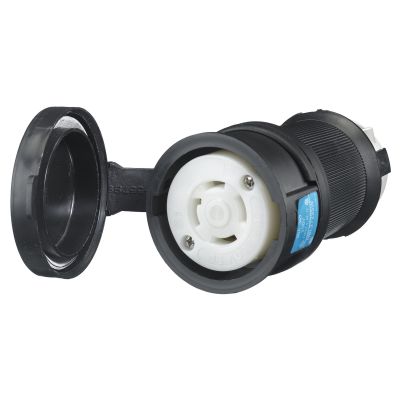

Wiring Device-Kellems Twist-Lock Insulgrip HBL2723SW Heavy Duty Grounding Cord Mount Watertight Locking Connector, 250 VAC, 30 A, 3 Poles, 4 Wires, Black/White
Plugs Connectors
1555095
HBL2723SW
Hubbell Wiring
$0.00
/ ea
Wiring Device-Kellems Twist-Lock Insulgrip Locking Connector, Heavy Duty Grounding Cord Mount Watertight, 250 VAC, 30 A, 3 hp, 3 Pole, 4 Wires, L15-30R NEMA Rating, Industrial Grade, IP66 Enclosure, 0.35 to 1.15 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black/White, 2.75 x 2.75 x 4.4 in
- Features
- UL type 4X environmental seal protects connection while-in use
- 1 piece, engineered thermoplastic housing is impact resistant for heavy duty industrial environments
- Closure cap is included for environmental seal when device is not in use
- Superior cord grip design protects terminations from excess strain
- Clear polycarbonate terminal retainer
- White Valox® cord clamp
- Steel nickel plated terminal clamp
- Brass terminal screw, ground screw, contact spring, spring binding plate, ground contact
- Stainless steel zinc plated cord clamp screw, body holding screw
- 3-phase
- 30 A, 10 AWG terminal accommodation
- Impact modified PBT
- Withstands 2000 VAC dielectric voltage
