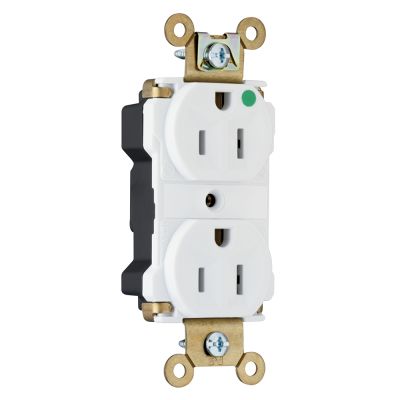

Legrand PT8200W

Pass & Seymour PT8200W 3-Phase Duplex Extra Heavy Duty Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White
Receptacles
6861817 PT8200W
Legrand
$0.00 / ea

PlugTail Extra Heavy-Duty Hospital Grade Duplex Receptacle 15amp 125volt White
  • Features
  • Plated steel wrap strap design for maximum durability and corrosion-resistance
  • 0.036 in THK brass triple wipe power contacts for lasting retention
  • No exposed terminals create a finger safe application before, during and after installation
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections
  • Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL listed, finger safe housing
  • Crimped and welded contacts
  • Large brass contacts snugly terminate on device blade terminals
  • Pre-stripped connector leads fasten to conductors, easier than standard pigtails
  • Auto-ground clip assures positive ground
  • Withstands 2000 VAC minimum dielectric voltage
  • Maximum 30 deg C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current
