Legrand TR5361USBBK

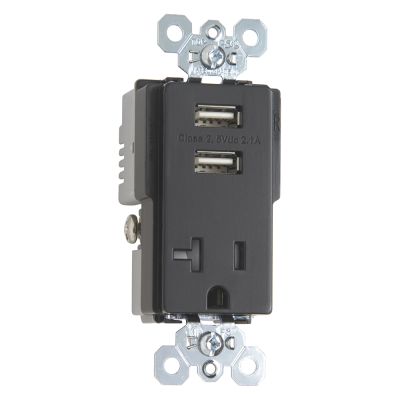

Pass & Seymour TR5361USBBK Decorator USB Charger, 20 A, 125 VAC, 1 Phase, 2 Poles, 3 Wires, Black
Receptacles
7592050
TR5361USBBK
Legrand
$0.00
/ ea
Pass & Seymour USB Charger, Decorator, Series: TR Series, 20 A, 125 VAC Electrical Rating, 1 ph, 2 Pole, 3 Wires, 14 to 10 AWG Wire, 2.0/3.0 USB, 2 USB Quantity, 2.1/3.1 A at 5 VDC USB, 1.6 in W x 1.31 in D x 4.18 in H Size, Back/Side Wired/Screw Connection, Surface Mounting, Federal Specification/Hospital Grade, Wiring Method: Back/Side Wired, Nylon/Thermoplastic, Black, Environmental Conditions: UL 94 V-2 Flammability Rated
- Features
- 2.1 A USB type A receptacle charges faster than other USB receptacles eliminates the need for bulky AC adapters
- Tamper-resistant receptacle and two 5 VDC USB ports that work with USB 2.0 and 3.0 compatible devices
- Back and side wire terminals accommodate 14 to 10 AWG stranded and solid copper wire
- Tamper-resistant, patented shutter system prevents improper insertion of foreign objects
- Meets 2011 National Electrical Code(NEC) tamper-resistant requirements
- Polycarbonate face material
- Zinc-plated ground terminal screw
- Stainless steel auto-ground clip assures positive ground
- 0.049 in zinc plated steel mounting strap
- Stainless steel auto-ground clip
- Tri-drive green with green chromate ground screw
- CDA 260 brass contacts
