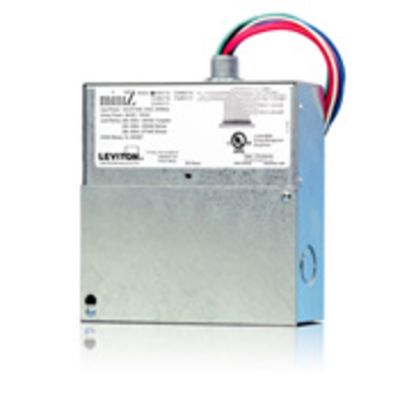

Leviton MZD20-102
Mini-Z Dimming 120 230 240 277 VAC 50/60 HZ Input 2 Zone With 2 10V Outputs and 2 120-277 V Relays
Area Lights and Shoeboxes (HID and LED)
6965430
MZD20-102
Leviton
$0.00
/ ea
Mini-Z Dimming 120 230 240 277 VAC 50/60 HZ Input 2 Zone With 2 10V Outputs and 2 120-277 V Relays
- Features
- Stand-alone simplified daylight harvesting with full range dimming
- Demand response capabilities
- 2-zone control for LED lighting
- 4-button switch available with ON, bright, dim and ON/OFF buttons with optional engraving 2-entry stations for individual manual zone control included with 2-zone, 2-relay kit (RCD20-102)
- Ca title 24 2013 stairwell application control
- Provides plug load control when paired with OPP20 super duty power pack
- Cost effective energy code compliance
- Ladderless Commissioning™ provides install and forget convenience
- Convenient occupancy sensor and photocell integration
- AutoCal™ automatic photocell target level calibration
- Accepts external time clock input to provide an OFF sweep function or modify the partial OFF function
- Simplified integration with emergency systems
- Controls maximum lighting output for additional energy savings potential and task tuning
- Daylight switching, full range 0 to 10 VAC dimming
- Partial ON control for initial light level in either manual switch or occupancy sensor auto modes
- Partial OFF control for minimum continuous light level
- Adjustable minimum light level shut Off value
- Emergency input drives auxiliary zones to full
- Automatic correction for light loss factor (LLF), recognizes and corrects for lumen maintenance issues, cost effective energy code compliance, ladderless Commissioning™ provides install and forget convenience, automatic closed loop multi-zone daylight
