Littelfuse KLKR002

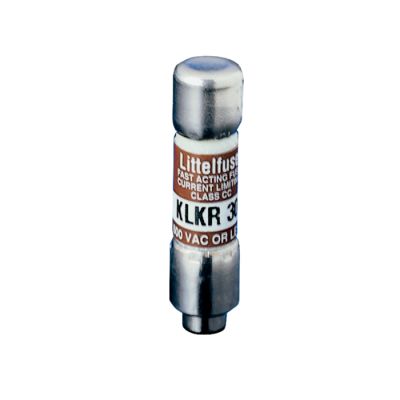

Littelfuse POWR-GARD KLKR002 High Speed North American Style Fast Acting Fuse, 2 A, 600 VAC/300 VDC, 20/200 kA Interrupt, CC Class, Cartridge Body
Class CC Fuses
233128
KLKR002
Littelfuse
$0.00
/ ea
KLKR series Class CC fuses are fast-acting fuses intended for general-purpose branch circuit protection. Their compact size, fast-acting overload response, and their highly current limiting design make them ideal for use in OEM equipment and control panels because Solid-state devices such as SCRs and other electronic equipment generally require fast-acting protection.
- Features
- Rejection feature prevents use of fuses with lower interrupting ratings or voltage ratings when used with corresponding fuse holders
- Extremely current limiting reduces damage caused by heating and magnetic effects of short circuit currents
- Provide superior protection in a fraction of the space required by other fuse classes
- 200 kA at 600 VAC, 20 kA at 300 VDC interrupting rating
- Nickel plated bronze cap
- 12 s minimum and 4 min maximum at 200%, 1 hr maximum at 135%, 15 min minimum at 110%
