Lutron H3DT825CU110

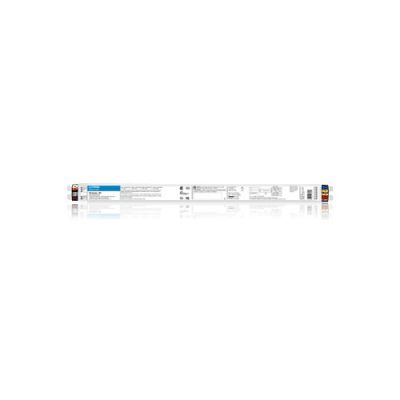

Hi-Lume 3D H3DT825CU110 Electronic Dimming Ballast, Linear/U Bend T8 Fluorescent Lamp, 25 W Lamp, 120/240/277 VAC, Programmed/Rapid, 1 Ballast Factor
Ballasts, Starters and LED Drivers
7154149
H3DT825CU110
Lutron
$0.00
/ ea
Hi-lume 3D 1 percent 3-Wire and EcoSystem Digital Link Controlled T8 Linear and U-Bent, 1 lamp, ballast factor of 1.00, C-can, 25W
- Features
- Hi-Lume® 3D ballasts deliver high dimming ratios and efficiency in a slim-profile enclosure, making it a great choice for low-profile architectural fixtures
- Because Hi-Lume® 3D is microprocessor-controlled, it can operate on the EcoSytem digital control bus and has the ability to listen, think, decide and remember, this provides a new level of flexibility in configuring lighting while saving energy
- Continuous, flicker-free dimming from 100% to less than 1% for T8, 1% for T5 and T5-HO and 5% for T5 Twin-tube
- Programmed rapid start design preheats lamp cathodes before applying full arc voltage to enhance lamp life
- Lamps turn on to any dimmed level without flashing to full brightness
- Low harmonic distortion throughout the entire dimming range maintains power quality
- Frequency of operation ensures that ballast does not interfere with infrared devices operating between 38 and 42 kHz
- Inrush current limiting circuitry eliminates circuit breaker tripping, switch arcing, relay failure and component life degradation
- Ballasts maintain consistent light output for different lamp lengths, ensuring fixture uniformity
- Ultra quiet operation
- Protected from miswires of any input power to control lead, or from lamp leads to each other and ground
- <=90% non condensing relative humidity, 75 deg C max ballast case temperature, class A sound rating
