nVent Hoffman PF7126

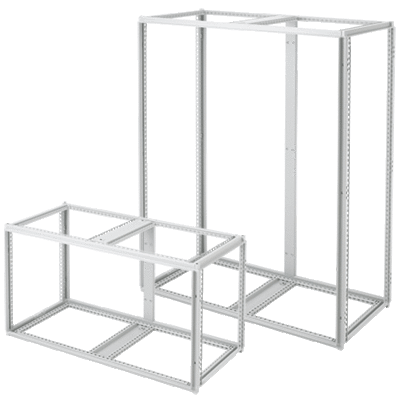

Hoffman ProLine™ PF7126 P20 Double-Bay Frame, 700 mm H x 1200 mm W x 600 mm D, For Use With ProLine™ Modular Enclosures, Steel
Enclosure Box Hardware and Accessories
4514048
PF7126
nVent Hoffman
$0.00
/ ea
Double-Bay Frames, 700x1200x600
- Features
- Welded back centerpost
- No front centerpost for easy component installation
- Center top and bottom frame sections for internal component mounting
- Welded corners with steel corner blocks that add strength and rigidity
- 12 ga, roll formed frame sections for strength
- Flange on door and side openings deflect liquids away from the enclosure interior
- Rectangular frame holes are designed for metric cage nut fasteners
- Round frame holes allow numerous grounding locations using M5 thread forming screws
- Access to both sides of frame mounting holes allows standard components to be easily installed
- Provisions for slide in subpanel, rack mounting and accessory mounting
- Simple means for joining frames to create multiple bay enclosures
- An open roll formed profile design affords complete surface corrosion protection and assembly access
- Sealed mounting for all external accessories
- Finished with RAL 7035 texture
- ProLine™ offers the broadest range of standard sizes in the industry
