Panduit LCMAX70-10-L

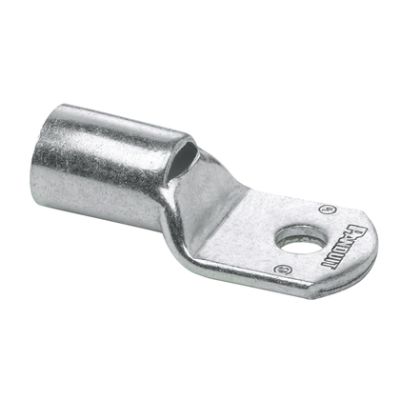

Panduit Pan-Lug LCMAX70-10-L 1-Hole Type LCMAX Metric Lug Compression Connector With Inspection Window, 70 sq-mm Stranded/Flex Copper Conductor, Die Code: P62, M10 Stud, Tin Plated Copper
Lug Compression Connectors
7756563
LCMAX70-10-L
Panduit
$0.00
/ ea
Panduit Pan-Lug Lug Compression Connector, 1-Hole Type LCMAX Metric, Stranded/Flex Copper Conductor, 70 sq-mm Conductor, Die Code: P62, 35 kV, M10 Stud, Straight Tongue, 24.5 mm W x 3.05 mm THK Tongue, 60.5 mm Overall Length, Standard Barrel, 13.5 mm ID x 16.5 mm OD x 24.5 mm L Barrel, Specifications: 26 mm L Wire Strip, 90 deg C, Tin Plated Copper, Yellow
- Features
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- Product information marked on connector for selection and installation
- Internally beveled wire entry for fast and easy installation
- UL listed and CSA certified to 35 kV and temperature rated to 90 deg C when crimped with Panduit® tools and dies
