Panduit PV14-8FX-C

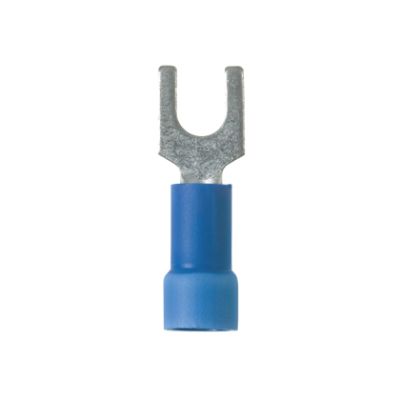

Panduit Pan-Term PV14-8FX-C Insulated Fork Terminal, #14 Conductor, 0.96 in L, Brazed Seam/Funnel Entry Barrel, Copper, Blue
Ring Terminals
6786711 PV14-8FX-C
Panduit
$0.00 / ea

Panduit PV14-8FX-C
Panduit Pan-Term Fork Terminal, Insulated, Series: PV-FX, Copper Stranded Conductor, #14 Conductor, #8 Stud, 0.96 in Length, Brazed Seam/Funnel Entry Barrel, Fork Tongue, 0.31 in W x 0.03 in THK Tongue, 600 V, Specifications: 7/32 in L Wire Strip, 0.2 in Dia Vinyl Insulation, 0.2 in Clearance, Fork Shape Enclosure, 221 deg F, Copper, Tin Plated, Blue
QTY
Add to Wishlist
  • Features
  • Fork design provides for fast and easy installation, without the need to remove fastener
  • Internal barrel serrations assure good wire contact and maximum tensile strength
  • Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
  • Brazed seam protects terminal barrel from splitting during the crimp process
  • Locks in place for secure connection
  • Barrel of terminal internally beveled to provide quick and easy wire insertion
  • Non-expanded insulation
