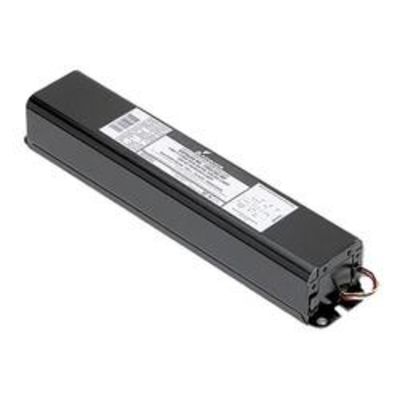

Signify 72C8185NP

Advance 72C8185NP HID F-Can HID Magnetic High Pressure Sodium Ballast, High Pressure Sodium Lamp, 150 W, 120/277 VAC, Pulse, 1 Ballast Factor
Ballasts, Starters and LED Drivers
56424 72C8185NP
Signify
$0.00 / ea

Signify 72C8185NP
Advance High Pressure Sodium Ballast, HID F-Can HID Magnetic, High Pressure Sodium Lamp, 150 W Lamp, 185 W Wattage, 120/277 VAC, 2.55/1.15 A, 60 Hz Frequency, Pulse Start, -40 deg F Minimum Starting, Power Factor: 1, 1 Lamp, 72C8185 Lamp Base, Ballast Factor: 1, ANSI S55 Ballast Grade, Metal, 12 in L x 3.9 in W x 2.6 in D Dimensions
QTY
Add to Wishlist
  • Features
  • The Philips Advance line of F-can HID ballasts comes in two dual voltage configurations for the US and Canadian market
  • Ballasts for these luminaires are most often encased and potted in fluorescent ballast type cans
  • 2.25/1 A input current (open circuit), 2.55/1.15 A input current (starting), 2.5 to 3.7/1.1 to 1.6 A input current (short circuit), 1.65/0.72 A input current (nominal)
  • Thermally protected
  • UL insulation class A of 105 deg C
  • 12 in L stranded wire
