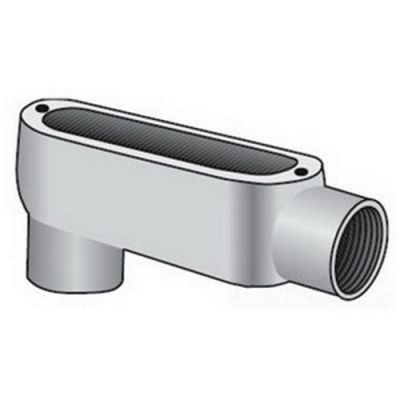

O-Z/Gedney LB400

O-Z/GEDNEY LB400 TYPE LB CONDUIT OUTLET BODY, 4 IN HUB, 324 CU-IN, MALLEABLE IRON, ALUMINUM ENAMEL/ZINC ELECTROPLATED
Conduit Body
404226 LB400
O-Z/Gedney
$0.00 / ea

O-Z/Gedney LB400
OZ-Gedney Spec 5 Type LB Conduit Body, 4 IN Hub, Length: 16-3/4 IN, 5-5/8 IN Width, Malleable Iron, Finish: Zinc Electroplated With Aluminum Enamel, Connection: Tapered FNPT, 3 (500 MCM ) Conductors, 324 CU-IN Volume, Third Party Certification: UL F
QTY
Add to Wishlist
  • Features
  • Smooth, rounded integral bushing in hubs protects conductor insulation
  • Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
  • Form 35™ malleable iron UNILETS™ are high tensile strength and ductility
  • High corrosion resistance, high impact and shock resistance
  • Sizes with flat back design ideal where fitting is mounted flat against surface
  • Raintight when an Appleton™ cover and gasket are installed
  • Tapered threaded hubs (NPT)
  • Raintight when used with gasketed covers
  • Internal volume and maximum wire capacity clearly marked on castings
  • Complete interchangeability with other manufacturers style 5 or 35 conduit bodies
  • Malleable iron suitable for use in concrete
